Switch—Pressure controller

Type：Pressure controller

Used in fields such as air conditioning, automobiles, industrial automation environments, water conservancy and hydropower, railway transportation, intelligent buildings, production automation, aerospace, military industry, petrochemicals, oil wells, electricity, ships, machine tools, pipelines, etc

product details

Product Features: Specifications
Fast response time (in milliseconds);
High accuracy (± 1.5% FS);
Good stability;
Low power consumption;
Can be customized according to the usage environment;
Excellent manufacturing technology;

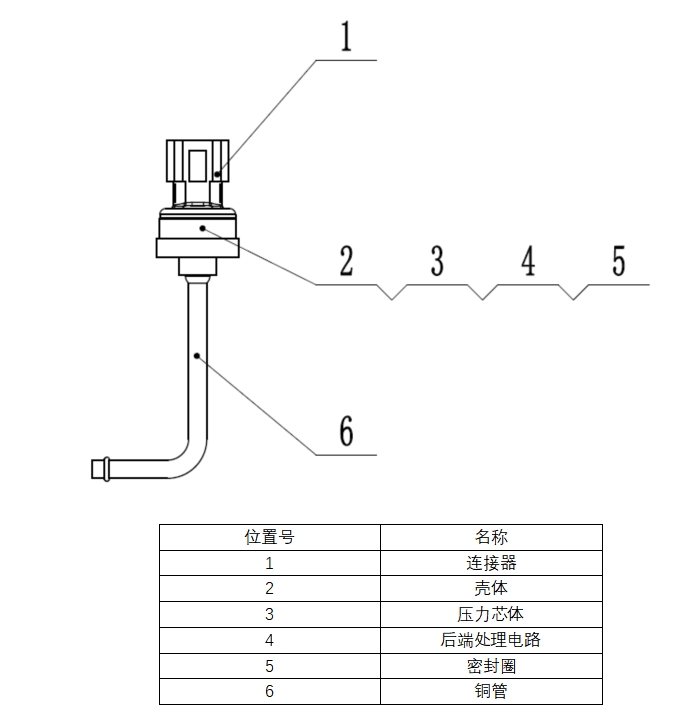

Product structure and main component diagram:

Product details: Details
Basic accuracy: ± 1.5% FS (25 ℃);
Full error band: ± 2.5% FS
Note: Basic accuracy refers to the room temperature accuracy deviation, including nonlinearity, hysteresis, and short-term repeatability.
The full error band refers to the product accuracy within the full temperature and pressure range.
performance
Supply voltage 5.0 ± 0.5VDC
Supply current 10mA MAX
Pressure medium R410a, R134a，R404a，R407c，R507
Pressure range: 0-3Mpa; 0-5Mpa；
Pressure resistance: 6Mpa (0-3MPa); 7.5Mpa(0-5MPa)；
Destructive pressure: 9Mpa (0-3MPa); 12.5(0-5MPa)；
Working temperature -30~120 ℃
Output voltage 0.5-4.5VDC
Insulation impedance 100Mohm (500VDC)
Electrical strength 1800VAC, 1S,<0.75mA
Overvoltage 20V
Reverse voltage -14V
IP rating IP66

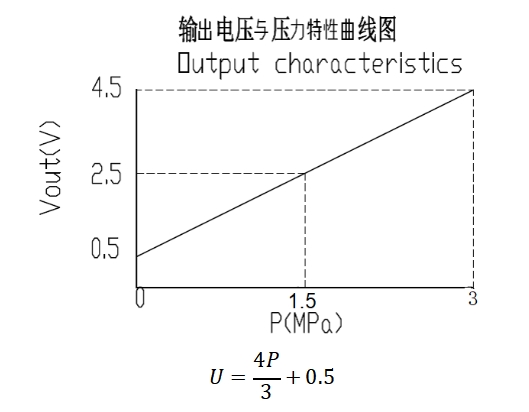

Output characteristics:
