Product Features: Specifications
No contact induction, no mechanical wear;
Low power consumption and high response frequency;
Integrated packaging, capable of reliable operation and long service life in various harsh environments;
High precision, high linearity, small size, and simple structure

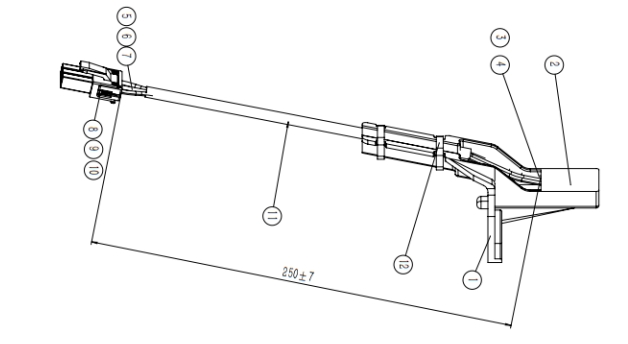

Product structure and main component diagram:

Product details: Details
Working voltage: DC5V ± 10%
Switch capacity: 9mA
Working current: 1.5uA
Working temperature range: -20 to+80 ℃
Storage temperature: -30 to+80 ℃
Action characteristics:
Sensor ON sensing distance: 9.5 ± 4mm;
Sensor OFF sensing distance: 9.5 ± 4mm;
Experimental/testing conditions
Unless otherwise specified, experiments/tests shall be conducted under the following conditions:
Temperature: 15-35 ℃;
Air pressure: 86~106kPa;
Relative humidity: 45~75%
