Product Features: Specifications
Position detection: can be used to detect the rotor position of electric vehicles, thereby achieving precise control of the motor
Proximity detection: can be used to detect the position of the door magnetic switch, thereby achieving precise control of the door magnetic field
Counting detection: It can be used to detect the number of rotations of the skipping rope, thereby achieving accurate counting of the skipping rope
Industrial control: In industrial control, it can be used to detect the position and speed of objects, thereby achieving precise control of the production line
Hall switches have non-contact, low power consumption, long service life, and high response frequency
Internally sealed with epoxy resin, it can work reliably in various harsh environments
High precision, high linearity, high integration, small size, simple structure

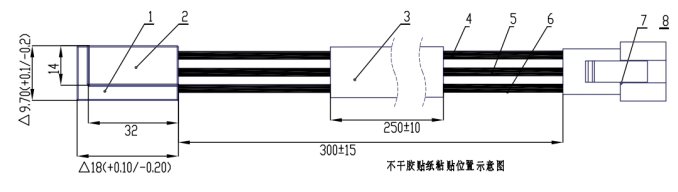

Product structure and main component diagram:

Product details: Details
Working voltage: 3~24V
Input current: ≤ 2.0mA
Continuous output current: ≤ 30mA
Output high level (input voltage VCC): 0.9 * Vcc-Vcc
Output low level (input voltage VCC): 0-0.5V
Sampling frequency: 10KHz
Working temperature range: -20~80 ℃
Storage temperature range: -30~80 ℃
ESD-HBM:   4KV
