Temperature and humidity sensor - Scottechs Co.,LTD.

sensor—Temperature and humidity sensor

Type：Temperature and humidity sensor

Suitable for various product applications that require temperature and humidity detection, such as refrigeration systems, space environment monitoring, etc.

product details

Product Features: Specifications
Adopting high-precision and high stability chips
Compact structure, easy to install
Low power consumption and high precision
Good long-term stability
Supports I²C communication, no need for customers to recalibrate

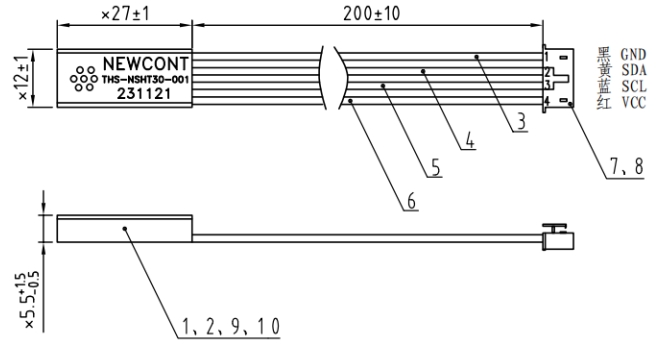

Product structure and main component diagram:

Product details: Details
Working voltage: 2.3~5.5V
Maximum operating current: ≤ 500 μ A
Working temperature range: -40~85 ℃
Working humidity range: 0~100% RH
Humidity performance parameters:
Accuracy tolerance: Typical value ≤ ± 4.5% RH; Maximum value ≤± 8% RH
Resolution: Typical value 0.01% RH
Response time: typical value of 4 seconds
Long term drift: typical value<0.25% RH/yr
Temperature performance parameters:
Accuracy tolerance: Typical value ≤ ± 0.7 ℃; Maximum value ≤± 1 ℃
Resolution: Typical value 0.01 ℃
Response time: Typical value of 2 seconds
Long term drift: typical value<0.03 ℃/yr
