Mechanical float switch - Scottechs Co.,LTD.

Switch—Mechanical float switch

Type：Mechanical float switch

This product is suitable for household water purifiers, RO machines, and other water tank containers where the water inlet height needs to be controlled

product details

Product Features: Specifications
Simple structure and easy to use: The mechanical floating ball product has a simple structure and is easy to install and use. ‌
Safe and reliable: Float level switches are widely used and have high safety and reliability. ‌
Fast speed and long working life: Compared with general mechanical switches, float switches have faster speed and longer working life
Strong resistance to load impact: Compared with electronic switches, float switches have the characteristic of strong resistance to load impact

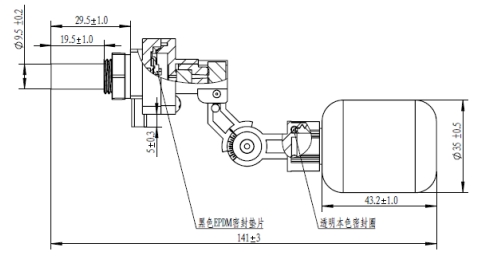

Product details: Details
Applicable water pressure ≤ 0.6Mpa
Flow parameters: When the inlet pressure is 0.2Mpa, the outlet flow rate is ≥ 1.5L/min
Storage environment temperature: -10~50 ℃
Maximum withstand voltage 0.8Mpa
Interface type 3/8 "plug-in rod
Installation position: Side of water tank
Suggested installation hole size: φ 13.3- φ 13.5mm
Wall thickness at installation hole ≤ 4mm
