Antifreeze heater - Scottechs Co.,LTD.

heater—Antifreeze heater

Type：Antifreeze heater

This model of antifreeze heating device is mainly installed in various positions inside the gas water heater to prevent freezing and cracking. Different combination methods can be customized according to needs. Compliant with EU RoHS.

product details

Product Features: Specifications
Good heat resistance
Low temperature coefficient
High load power
High insulation
Can be customized according to the usage environment

Product details: Details
Resistance accuracy F: 1%, G: 2%, J: 5%
Maximum operating voltage: 250V
Temperature coefficient: ± 400PPM/℃ (within ± 400 parts per million)
Insulation resistance: DC500V, 100M Ω or above
Voltage endurance: AC1800V/1S leakage current less than 0.8mA (milliampere)
Operating temperature range: -30~150 ℃
Product Name：

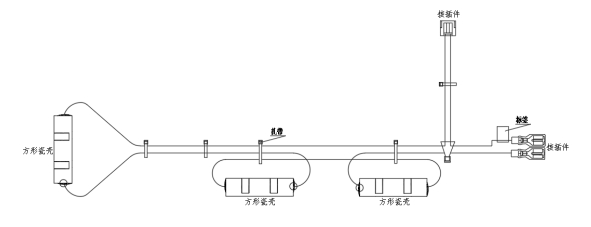

Product structure and main components：
